A/B Ultrasonic Scans
For use in ophthalmology
Portable and affordable solution for any practice

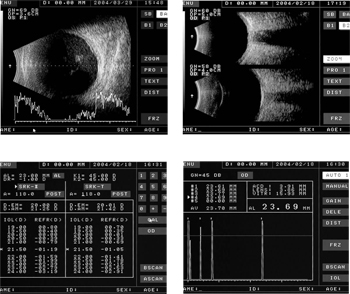

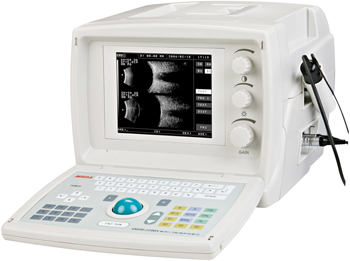

Features of the AB-6100
- B, B+B, B+A, and A functions
- 8-step zoom
- High-resolution images
- Post-capture image processing
- Real-time clock
- Black and white display
- 7” CRT monitor
- Portable, turn-up keyboard
- Trackball for easy measurement and operation
- Stores up to 4 images in memory
AB-6100 Specifications
Image output: Video printer or HAI IMS / CL
Power supply: AC 110/220v, 60/50Hz
Dimensions: 360 x 300 x 260mm
Weight: 22lb (10kg)
Frequency: 100MHz
Gain control: ≥ 98dB
Resolution: Axial ≤ 0.2mm; Lateral ≤ 0.4mm
Gray scale: 256
Scanning scope: 53° angle, 31-63mm depth, 8 steps
Gain control: ≥ 98dB
Resolution: Axial ≤ 0.2mm; Lateral ≤ 0.4mm
Gray scale: 256
Scanning scope: 53° angle, 31-63mm depth, 8 steps
Frequency: 100MHz
Biometry accuracy: ≤ ± 0.06mm
Display resolution: 0.01mm
Measuring scope (AL): 16-40mm
Measuring parameters: Anterior chamber depth, lens
thickness, vitreous length, axial length
Measuring method: Automatic (for normal, aphakic,
pseudophakic, cataract) and manual
IOL power calculation: SRK-1, SRK-II, SRK/T, BINK/2,
HOLLADAY and HOFFER-Q
Biometry accuracy: ≤ ± 0.06mm
Display resolution: 0.01mm
Measuring scope (AL): 16-40mm
Measuring parameters: Anterior chamber depth, lens
thickness, vitreous length, axial length
Measuring method: Automatic (for normal, aphakic,
pseudophakic, cataract) and manual
IOL power calculation: SRK-1, SRK-II, SRK/T, BINK/2,
HOLLADAY and HOFFER-Q

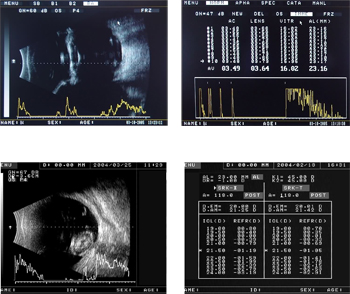

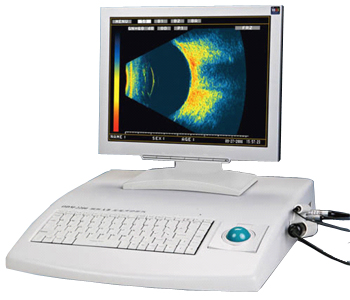

Features of the AB-6200
- B, B+B, B+A, and A functions
- Zoom from 34-60mm
- 15” color LCD screen
- Higher resolution than AB-6100
- Post-capture image processing
- Variable display area
- Adjustable TGC
- Cineloop for 5.6 seconds
- Real-time clock
- Multi-groups of calipers for distance measurement
- Variable area measurement
- Immersion mode measurement
- Save up to 50 groups for measurement results
- Full-screen character note
- Touchpad for easy measurement and operation
- Store up to 8 images in memory
AB-6200 Specifications
Image output: Video printer or HAI IMS / CL
Power supply: AC 110/220v, 60/50Hz
Dimensions: 460 x 420 x 80mm
Weight: 22lb (10kg)
Color: 8 color codes
Frequency: 10MHz
Gain control: ≥ 98dB
TGC: -30dB – 0dB
Resolution: Axial ≤ 0.2mm; Lateral ≤ 0.4mm
Gray scale: 256
Cineloop: 5.6 sec/56 images; single or circle
Scanning scope: 53° angle, 34-60mm depth
Frequency: 10MHz
Gain control: ≥ 98dB
TGC: -30dB – 0dB
Resolution: Axial ≤ 0.2mm; Lateral ≤ 0.4mm
Gray scale: 256
Cineloop: 5.6 sec/56 images; single or circle
Scanning scope: 53° angle, 34-60mm depth
Frequency: 10MHz
Measuring method: Immersion/contact
Biometry accuracy: ≤ ± 0.06mm
Display resolution: 0.01mm
Measuring scope (AL): 16-40mm
Measuring parameters: Corneal thickness (immersion mode), anterior
chamber depth, lens thickness, vitreous length and axial length
Measuring mode: Automatic (for normal, aphakic, special, dense
cataract) and manual; special for pseudolens, silicon oil eye, etc.
IOL power calculation: SRK/T, SRK-II, BINK/2, HOLLADAY, HOFFER-Q
and HAIGIS
Measuring method: Immersion/contact
Biometry accuracy: ≤ ± 0.06mm
Display resolution: 0.01mm
Measuring scope (AL): 16-40mm
Measuring parameters: Corneal thickness (immersion mode), anterior
chamber depth, lens thickness, vitreous length and axial length
Measuring mode: Automatic (for normal, aphakic, special, dense
cataract) and manual; special for pseudolens, silicon oil eye, etc.
IOL power calculation: SRK/T, SRK-II, BINK/2, HOLLADAY, HOFFER-Q
and HAIGIS
