Eye Bank Specular Microscopes
True area for accurate cell count
The widest field of view with no distortion

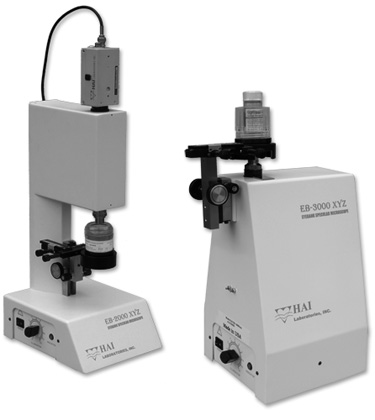

The HAI EB-2000xyz and EB-3000xyz are non-contact eye bank specular microscopes. They are compact, simple, reliable and user-friendly, providing optimum clear images with a field of view of 450µm x 500µm.

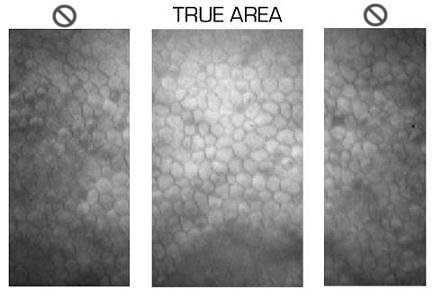

Why is true area important? Because it ensures accuracy in cell analysis results (density, polymegathism, pleomorphism). Our wide field of view ensures that you’ll always have a large enough sample to count from.

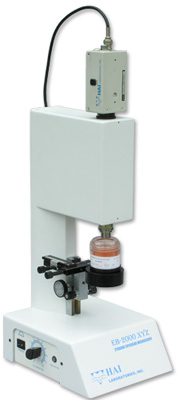

EB-2000xyz Eyebank Specular Microscope
Features of EB-2000xyz
- Traditional style for viewing chamber only
- For both human tissue and animal tissue
- World’s first XYZ stage
- Most accurate digital pachymeter
- Modular and upgradeable design
Specifications
Type: Non-contact objective lens
Field of view: 450µm x 500µm
CCD camera: Monochrome
Illumination: Halogen lamp, 6v 20w
Power: 110/220v – 60/50Hz
Weight: 10 lb (4.55 kg)
Dimensions: 7.25” x 9” x 17.75” (183mm x 227mm x 447mm)
EB-3000xyz Eyebank Specular Microscope
Features of EB-3000xyz
- Innovative style for viewing chambers and vials
- For human tissue only
- World’s first XYZ stage
- Most accurate digital pachymeter
- Modular and upgradeable design
Specifications
Type: Non-contact objective lens
Field of view: 450µm x 500µm
CCD camera: Monochrome
Illumination: Halogen lamp, 6v 20w
Power: 110/220v – 60/50Hz
Weight: 10 lb (4.55 kg)
Dimensions: 7.25” x 9” x 17.75” (183mm x 227mm x 447mm)
